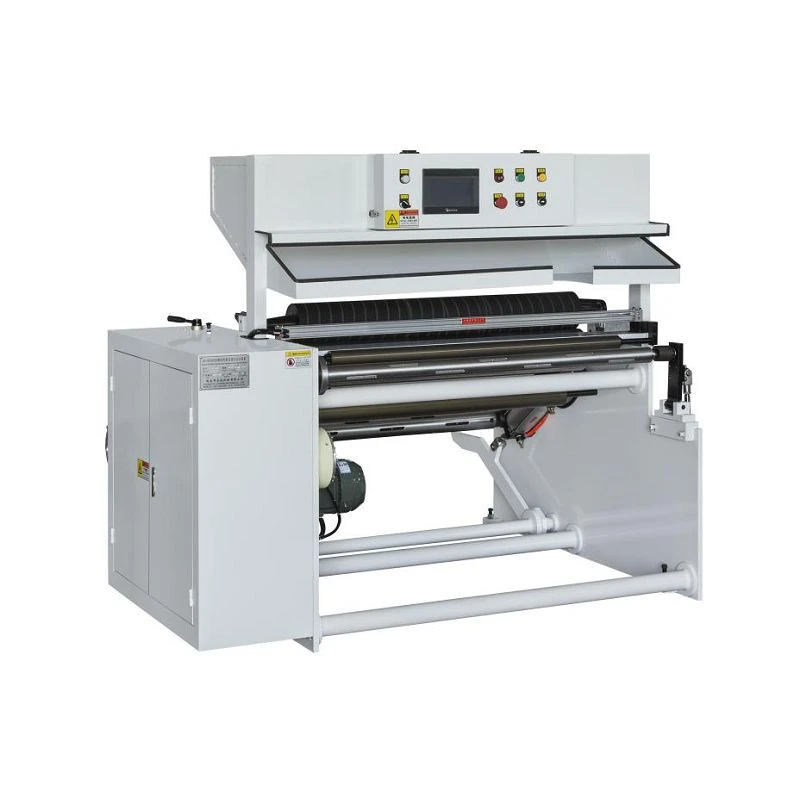

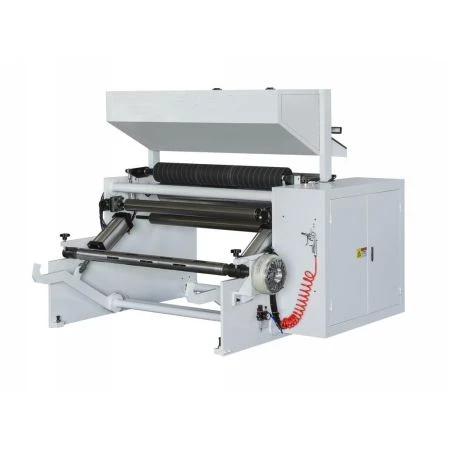

Paper Roll Slitting & Rewinding Machine

In the deep-processing of paper products such as wallpaper, gift wrap, and advertising paper, many manufacturers work with large-diameter raw paper rolls. These bulky rolls are heavy and space-consuming; they cannot be sold directly or turned into finished goods without further processing. They must first be slit, cut to precise lengths, and rewound into uniformly sized small rolls before they can move to the next stage. The paper roll slitting and rewinding machine is an automated piece of equipment built specifically for this task. It is particularly well-suited for small- and medium-sized paper converting plants that run batch production – by handling the width and diameter of the raw stock and producing neat, consistently sized reels, it simplifies subsequent packaging and direct shipment.

This machine offers great flexibility in compatibility. It can produce rolls with rigid paper cores, soft cores, or even coreless hollow rolls. It can also handle some film materials, effectively replacing several dedicated machines and saving the factory a significant amount in equipment procurement. The whole unit is constructed with a welded, thickened steel-plate frame, giving it ample weight and excellent rigidity. Even during prolonged high-speed operation, it runs steadily without shaking or shifting. Noise levels are low, and the failure rate is minimal. Routine cleaning and maintenance are straightforward, so the machine is fully capable of handling continuous, high-volume workshop production without trouble.

On the feeding side, the machine is equipped with a pneumatic lifting unwinding stand, doing away with the old manual lifting method that required several workers to change a heavy roll. Now a single operator can easily load and replace rolls, saving both manpower and time. The maximum unwinding diameter is 700 mm, which covers most standard industrial raw paper sizes on the market and accommodates a wide variety of paper processing requirements.

The rewinding performance is where this machine truly shines. It features a continuous air-expanding rewinding shaft, with inflation and deflation automatically controlled by the computer system. The shaft diameter can be adjusted freely or customised to match the customer's core size. The maximum rewinding diameter reaches 220 mm, and the tension remains constant and well-balanced throughout the process. The finished rolls are tightly wound, with flat, neat end faces – free from wrinkles, looseness, side-shifting, or uneven thickness. They come out as quality products that need no secondary edge trimming.

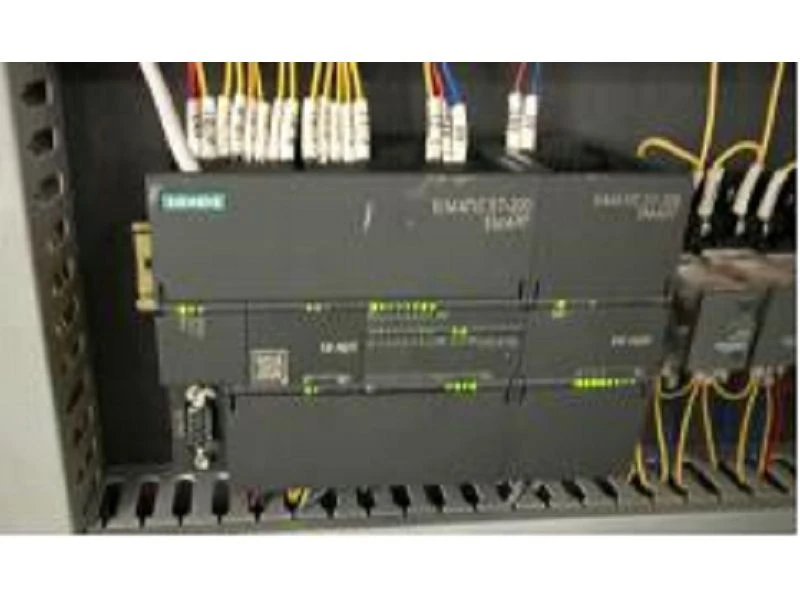

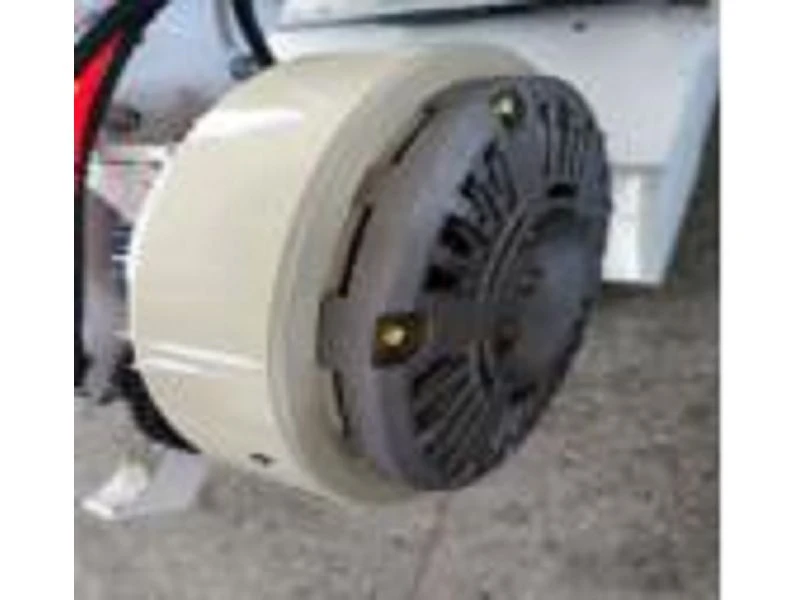

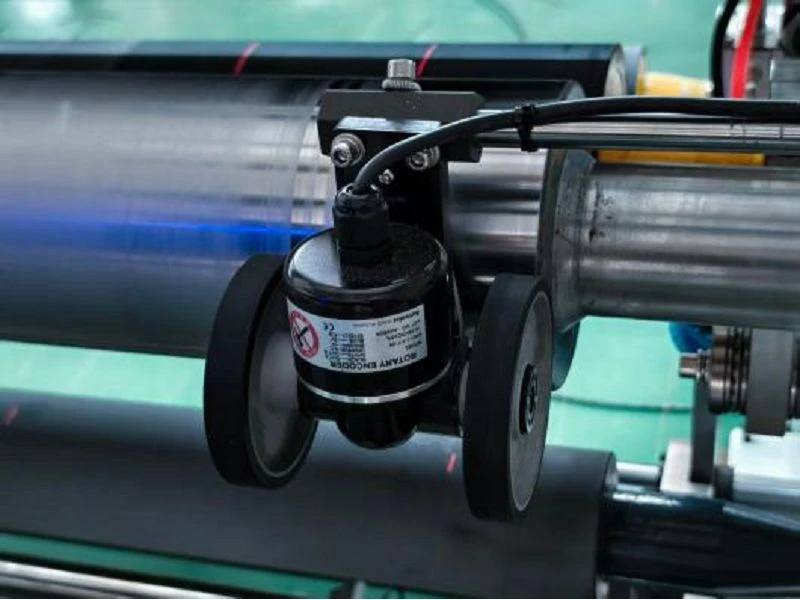

The control system uses a mature PLC paired with a Weilun touch screen. Parameter settings are simple and intuitive, so even new operators can get up to speed quickly. Built-in features include high-precision automatic length counting, preset-length stop, and leftover-material warning – eliminating manual measurement errors and ensuring high dimensional accuracy in slitting and rewinding. The servo main motor, combined with a professional magnetic-powder tension control system, provides smooth starts and stops as well as stepless speed adjustment. The maximum operating speed is 200 metres per minute, and even at high speed the machine effectively prevents paper tearing, stretching, or wrinkling. Material waste is reduced, and the finished-product yield is significantly improved.

The cutting unit employs a rodless-cylinder reciprocating flying-knife design, producing clean, smooth cuts without burrs. Every finished roll has a neat, tidy edge. The entire process – from unwinding, tension adjustment, precision rewinding, length measurement, to automatic cutting – is fully automated, requiring minimal manual intervention. If a fully automatic shrink-wrapping machine is connected downstream, the two units form an integrated processing and packaging line with seamless handover between stages, further boosting overall workshop productivity. In the paper-converting industry, this machine truly stands out as a practical, cost-effective core piece of equipment.
