Wenzhou Sanhui Machinery Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of high speed slitting machine in China. With abundant experience, we are able to meet the needs of the majority of our customers. Welcome to wholesale customized high speed slitting machine at competitive price from our factory.

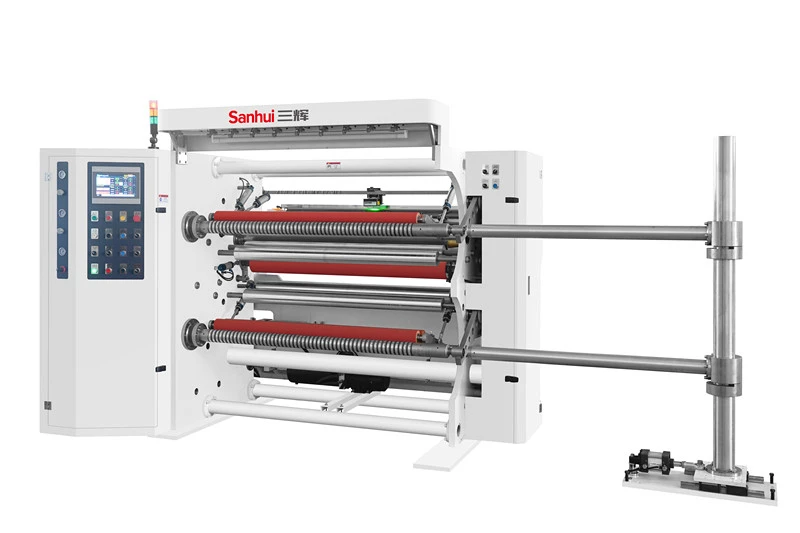

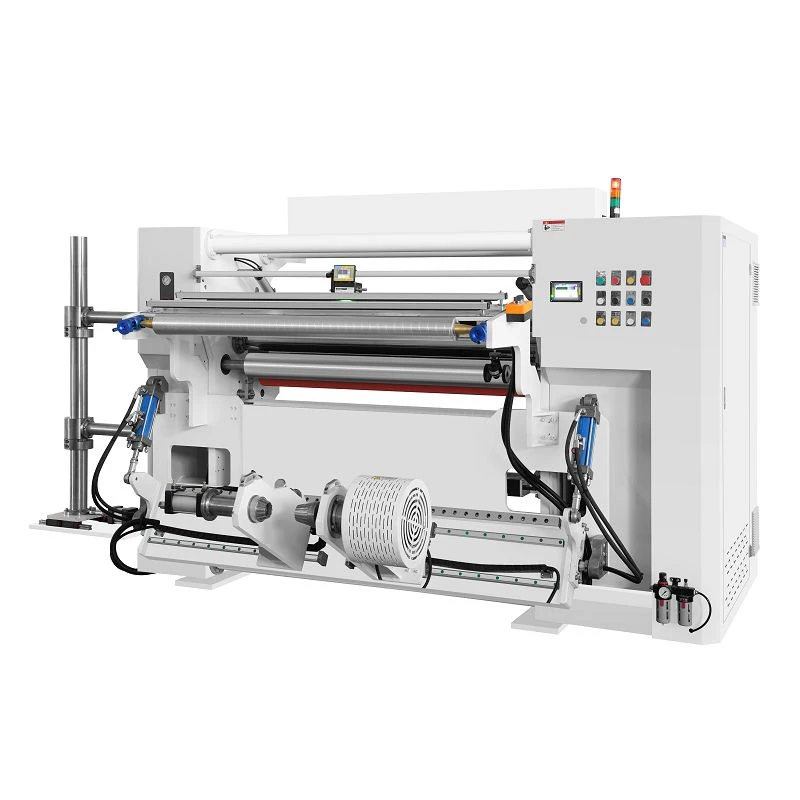

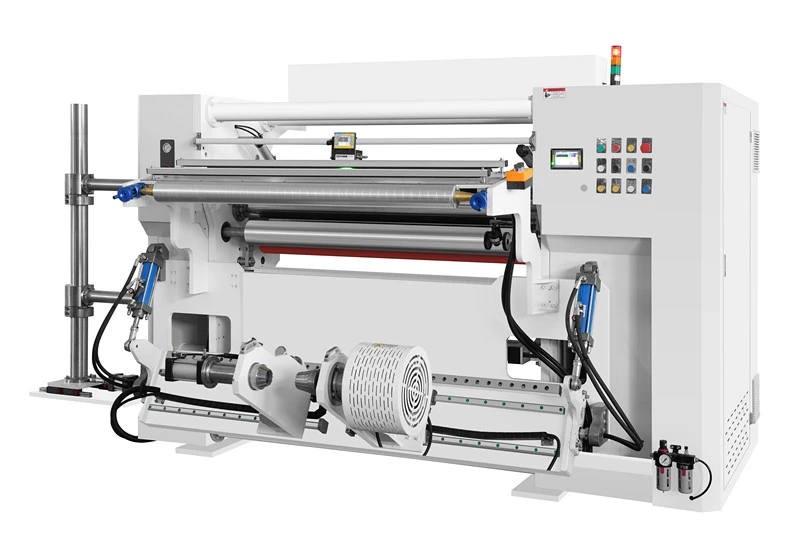

This high speed slitting machine delivers high-precision slitting and rewinding solutions for various film materials, including BOPP, PET, PVC, CPP, PE, laminated film, metallized film, self-adhesive film, etc., as well as various paper roll products such as kraft paper, vinyl wrapping paper, coated-laminated paper, coated paper and wrapping paper. It can basically meet the processing requirements across upstream and downstream segments of the printing and packaging industry.
Performance & Features
Control System: The high speed slitting machine adopts intelligent Siemens PLC control system, integrated with functions including automatic counting, residual material detection, alarm stop, and automatic stop at set length, ensuring accurate and safe operation.
Web Guiding System: Equipped with high-sensitivity automatic web guiding system to keep material running without deviation, producing neat finished rolls after slitting and rewinding.
Loading Method: Supports integrated or split hydraulic shaftless loading, which greatly improves loading efficiency and reduces labor intensity for operators.
Drive Control: Full-servo drive solution: one servo motor for main machine and two servo motors for rewinding section. It features high control accuracy, fast response and stable performance even at high-speed running.
Automatic Ejecting: The machine is fitted with automatic roll ejecting function. Upon machine stop, the motor pushes finished rolls out directly, eliminating manual handling.
|
Displays only the part width and model parameters |
||||
|
Model |
SHGS-FT1100 |
SHGS-FT1300 |
SHGS-FT1600 |
SHGS-FT1800 |
|
Roll Width |
1100mm |
1300mm |
1600mm |
1800mm |
|
Max.Unwinding Diameter |
0-1500mm |
0-1500mm |
0-1500mm |
0-1500mm |
|
Max.Rewinding Diameter |
600/800mm |
600/800mm |
600/800mm |
600/800mm |
|
Slitting speed |
0-600/min |
0-600/min |
0-600/min |
0-600/min |
|
Edge Position Control Accuracy |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
|
Total Power |
18kw |
23kw |
28kw |
33kw |
|
Overall Dimensions |
4360×3750×2090mm |
4650×3750×2090mm |
4950×3750×2090mm |
5150×3750×2090mm |
|
Machine Weight |
3800kg |
4200kg |
4600kg |
5000kg |
