Wenzhou Sanhui Machinery Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of shrink sleeve cross cutting machine in China. With abundant experience, we are able to meet the needs of the majority of our customers. Welcome to wholesale customized shrink sleeve cross cutting machine at competitive price from our factory.

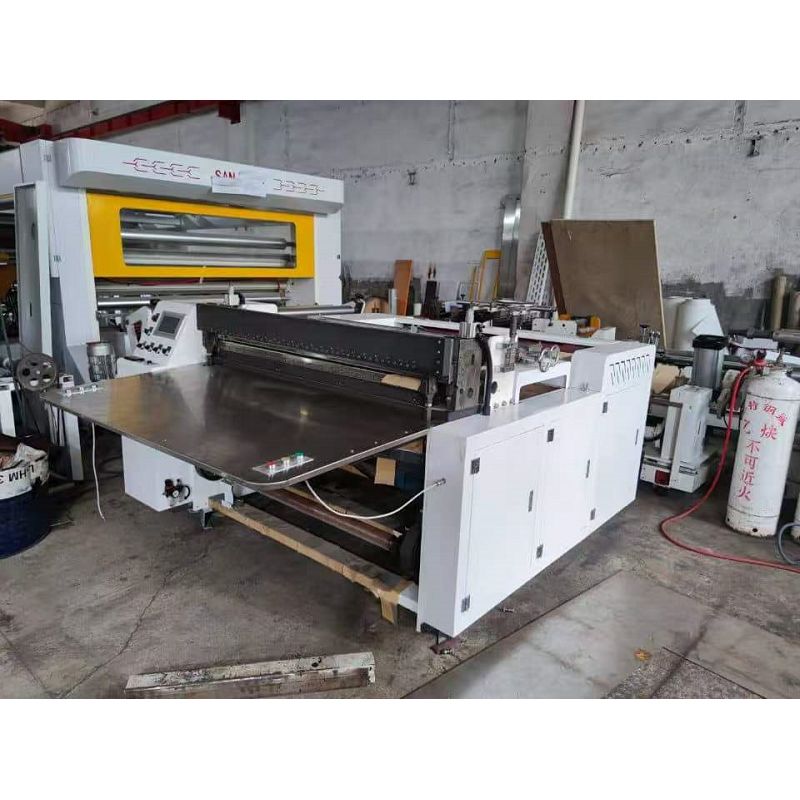

The automatic cross cutter is a high-efficiency machine designed for cutting a variety of roll-fed materials. It works with a broad range of films and paper-based stocks, making it useful across sectors like packaging conversion, composite material manufacturing, and print finishing. The equipment takes full rolls and cuts them into sheets according to user-defined dimensions, replacing manual cutting methods and improving the consistency and standardisation of production processes.

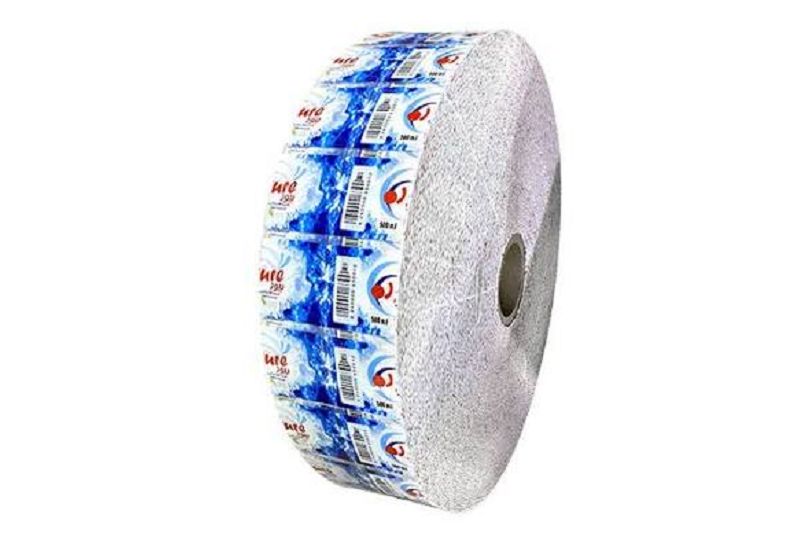

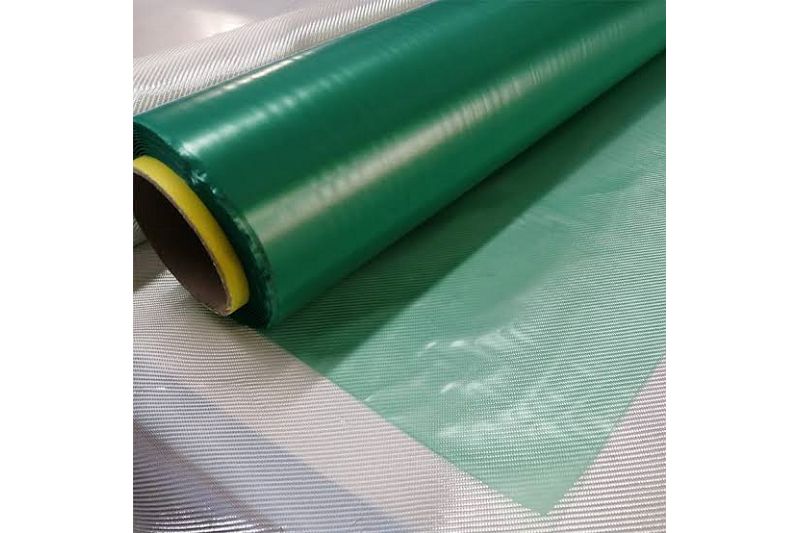

This machine handles many common substrates, including PET, OPP, CPP, PVC, OCA protective film, release film, self-adhesive label stock, synthetic paper, and kraft paper. That versatility means it can meet the diverse and customised needs of different manufacturers. The 350 model offers a maximum processing width of 300 mm, paired with an unwinding diameter of up to 600 mm and a 350 × 600 mm rewinding table. Cutting length is freely adjustable, with a maximum of 700 mm, making the unit well suited for medium- to small-roll volume production.
Operating speed is variable between 0 and 60 metres per minute, so users can adjust it according to material thickness and physical properties – striking a practical balance between throughput and cutting precision. The machine is fitted with a full-automatic tension control system that maintains consistent web tension throughout the run. This helps prevent common defects like stretching, wrinkling, and lateral displacement, ensuring that every cut sheet has uniform dimensions and significantly lowering the reject rate.
Power comes from standard 380V three-phase 50Hz industrial supply, with a total power draw of 7 kW, and it requires an external air supply of 3 kW. The unit measures 2500 mm in length, 1200 mm in width, and 1200 mm in height, with a total weight of 600 kg. Thanks to its solid, rigid construction, the machine runs smoothly with minimal vibration, allowing it to operate continuously for long hours in a workshop environment. An independent control cabinet and a user-friendly control panel allow quick setting of cut length, running speed, and other parameters – operation is straightforward and the learning curve is short.
Overall, the automatic cross cutter streamlines the entire roll-to-sheet cutting workflow. From feeding and tension regulation to length-based cutting, the process is fully automated and requires little manual involvement. For factories that process protective films, kraft paper, or self-adhesive roll materials, this machine helps cut labour costs and stabilise product quality. It represents a highly cost-effective solution for small- to medium-scale roll cutting operations.
