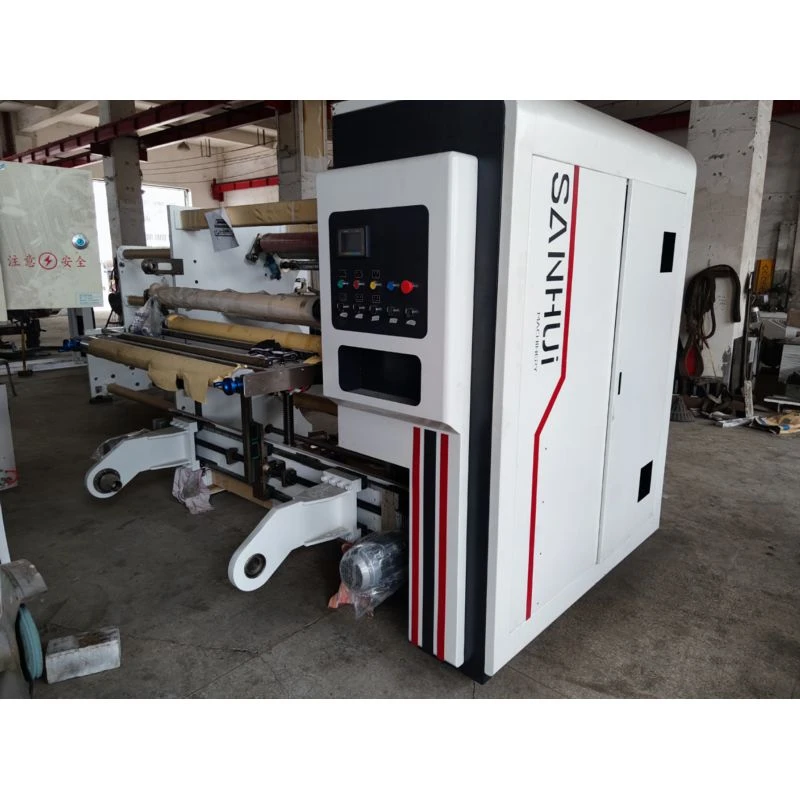

Aluminum Coil Slitter

Wenzhou Sanhui Machinery Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of aluminum coil slitter in China. With abundant experience, we are able to meet the needs of the majority of our customers. Welcome to wholesale customized aluminum coil slitter at competitive price from our factory.

This aluminum coil slitter adopts a hydraulic shaft-less unwinding system. It eliminates the cumbersome clamping-and-fixing work required by conventional air-expanding shafts. The hydraulically driven expanding mechanism directly supports large aluminum foil master rolls, cutting loading time by half. One single operator can complete loading effortlessly, which greatly improves production-line preparation efficiency.

This aluminum coil slitter is specially engineered for heavy-weight and large-volume aluminum foil rolls. It runs extremely stably; roll deviation caused by equipment vibration is completely avoided to ensure consistent and steady material feeding.This aluminum coil slitter equipped with a pneumatic brake and intelligent closed-loop tension system, it enables precise tension adjustment across high-to-low speed ranges. Whether for ultra-thin double-zero aluminum foil or thick aluminum foil, materials can be conveyed smoothly without stretching, wrinkling or fluttering.

For rewinding, slip shafts serve as the core component. Tension for each rewinding position can be adjusted independently. When multiple strips are slit and wound simultaneously, uniform tightness is guaranteed for every finished roll. It perfectly solves long-standing common defects of ordinary rewinding systems, such as "inner-tight-outer-loose" rolls and roll collapse.

High‑precision slitting mechanism



Designed with cemented carbide circular knives and shear‑type knife holders, the blades feature a long service life and produce burr‑free slitting. The knife positions adopt precision lead screw / digital adjustment mechanisms, delivering slitting‑width accuracy up to ±0.01 mm to meet micron‑level processing requirements for lithium‑ion battery foils, pharmaceutical foils and other materials.

Intelligent Deviation‑Correction System



Equipped with high‑precision CCD / ultrasonic deviation‑correction devices.This aluminum coil slitter tracks the edges of coil materials in real time and automatically corrects the running trajectory. Even under high‑speed operation, it can guarantee accurate slitting positions and eliminate waste of edge trimmings.
