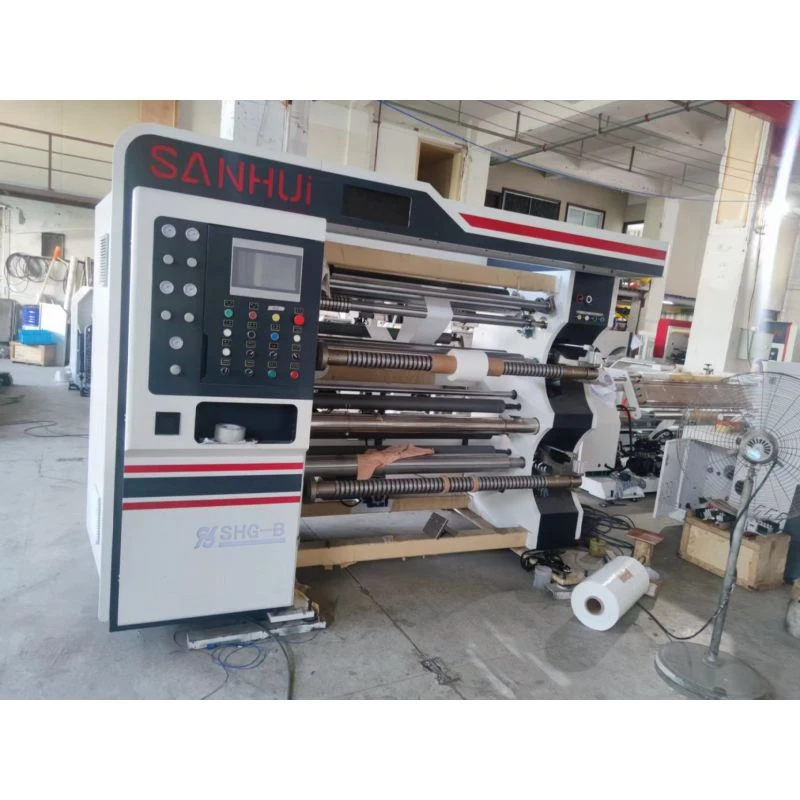

Wenzhou Sanhui Machinery Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of aluminium foil slitting machine in China. With abundant experience, we are able to meet the needs of the majority of our customers. Welcome to wholesale customized aluminium foil slitting machine at competitive price from our factory.
Aluminium foil slitting machine is soft and prone to scratching, so this machine is specifically optimized to work with its "temperament." Its main features include low-tension unwinding, precise slitting, dust control, and neat rewinding, ensuring that the cut foil surfaces remain flawless and the edges are perfectly straight.
Performance and Features
Stable unwinding without material breakage
The unwinding runs extremely stable without material breakage. This aluminium foil slitting machine is equipped with heavy-duty air-expanding shafts. For extra-large-diameter aluminum foil master rolls, hydraulic shaftless unwinding is available as an option for effortless roll change.
Given the strong surface reflection of aluminum foil, conventional photo-electric edge position controllers are prone to interference and perform poorly. Therefore, this machine adopts dedicated EPC edge position correction or ultrasonic servo correction systems. They accurately track the material edge to prevent web wandering and deliver neatly trimmed edges.
Burr-free clean cutting

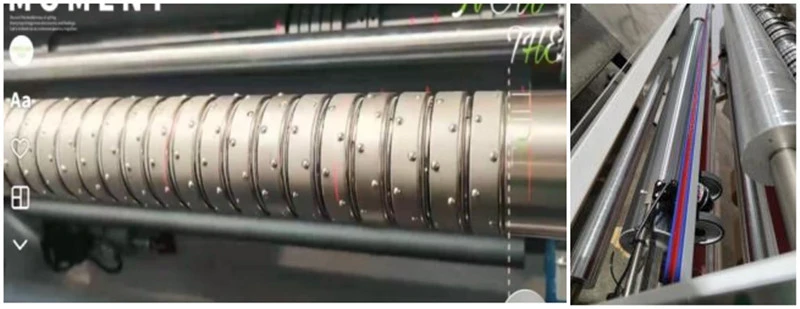

The cutting equipment uses carbide upper and lower round wheels for rolling and shearing operations. The aluminum foil cutting machine can automatically adjust the overlap between the tool gap and the blade according to the thickness of the aluminum foil, so as to achieve a sharp cutting edge. It can avoid the problems of aluminum powder, burrs and edge curls, and easily process aluminum foils of different thicknesses and specifications.
Neat and firm re-winding without loose rolls
Dual-shaft alternating re-winding comes as standard; high-end models support non-stop roll change. Differential slip shafts are a must-have. When re-rolling multiple aluminum foil strips at the same time, it is inevitable that there will be a small diameter difference between each small roll. The sliding difference shaft will automatically distribute different torques to each core shaft, which perfectly solves the problem of uneven tension caused by inconsistent diameters, and ensures that the finished product is tightly rolled and the end surface is flat.
The aluminium foil slitting machine is equipped with PLC and touch screen, which can store several sets of aluminum foil process parameters. During production, you can change materials of different thicknesses, and you can call them out with one click without resetting. It also has an automatic metering function, and it will automatically slow down and stop when it reaches the set length.
As soon as the aluminum foil runs fast, it is easy to generate static electricity. An anti-static device can be optionally installed, which can reduce the adhesion of aluminum powder to the aluminum foil and prevent the aluminum foil layers from sticking to each other.
