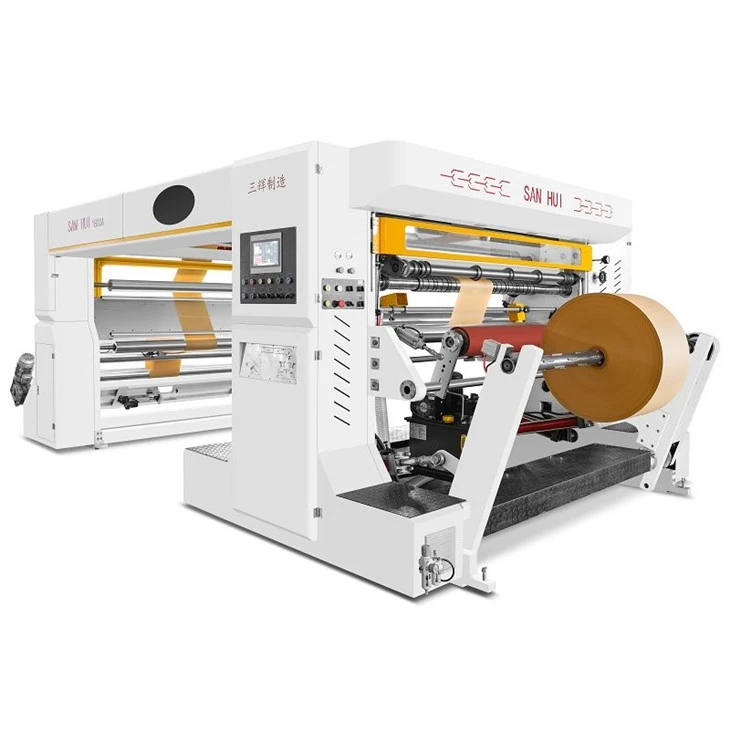

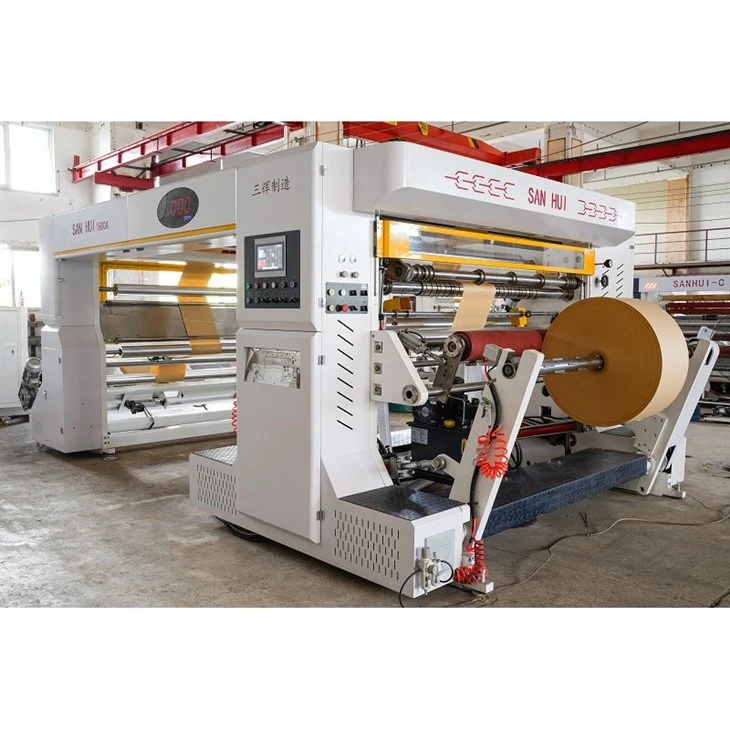

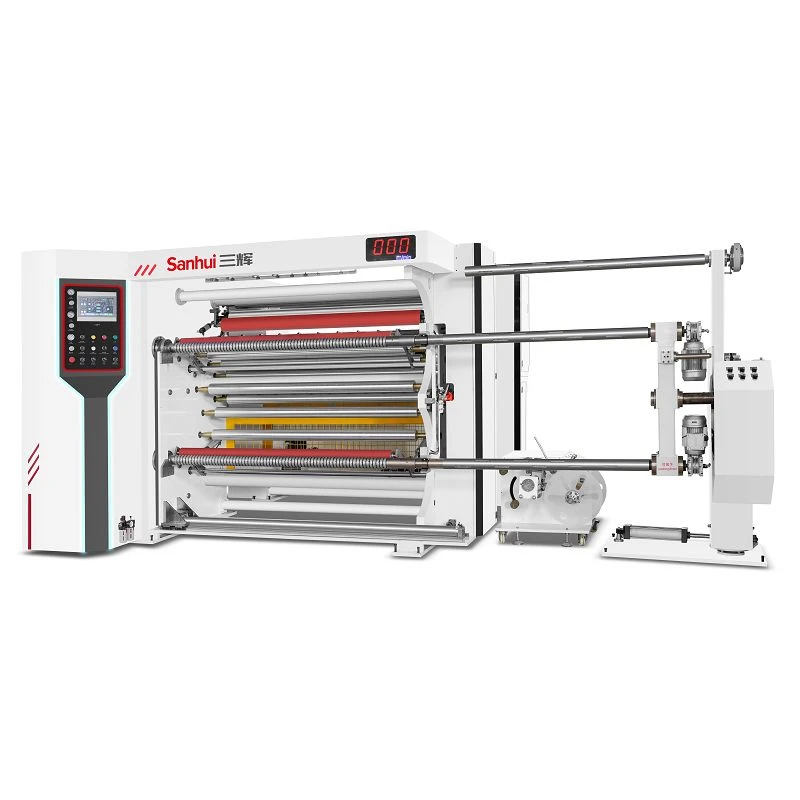

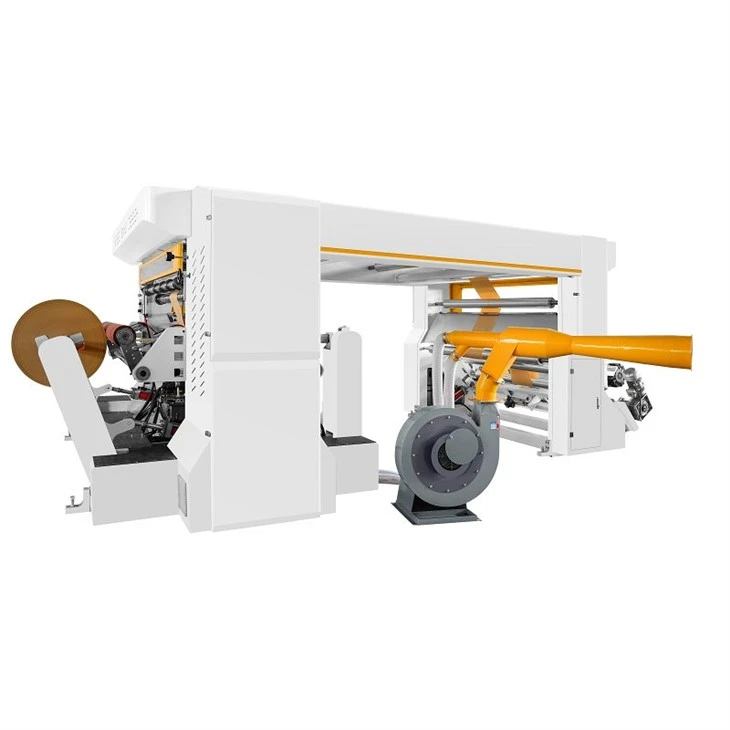

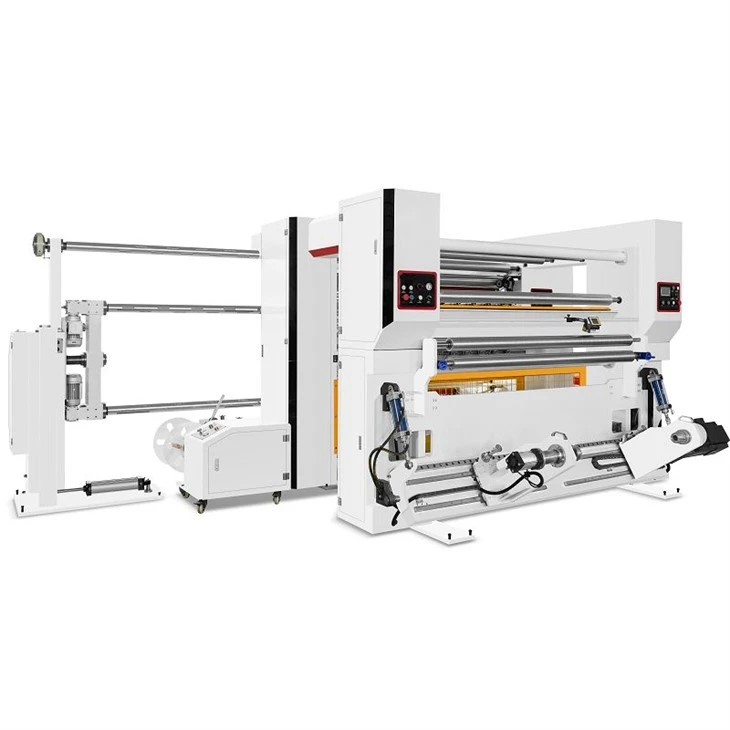

Gantry Type Slitter Rewinder

1.The gantry type slitter rewinder full‑servo drive + constant tension – Paired with a central winding structure and VFD speed control on the main motor. Acceleration and deceleration are smooth, no vibration, no drift – just steady, accurate cutting.

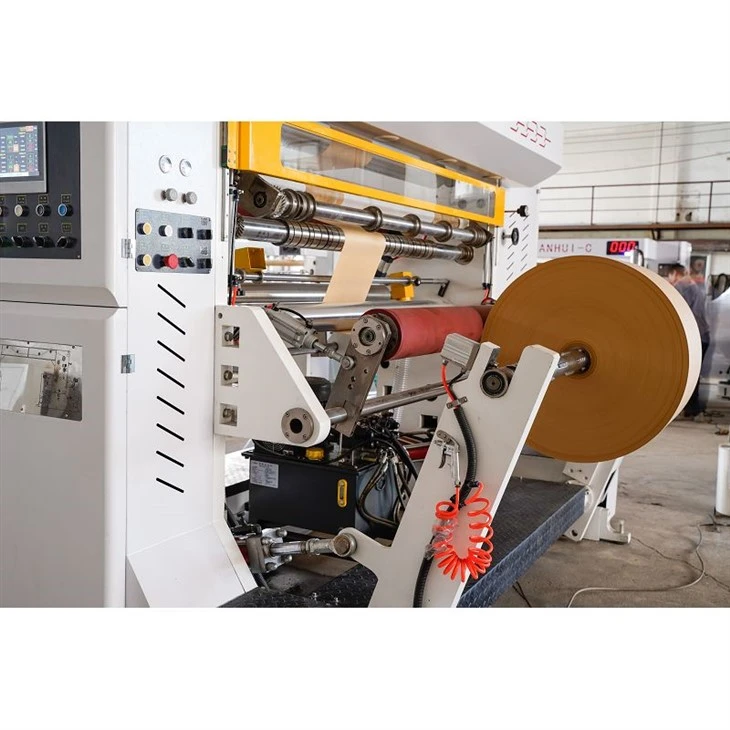

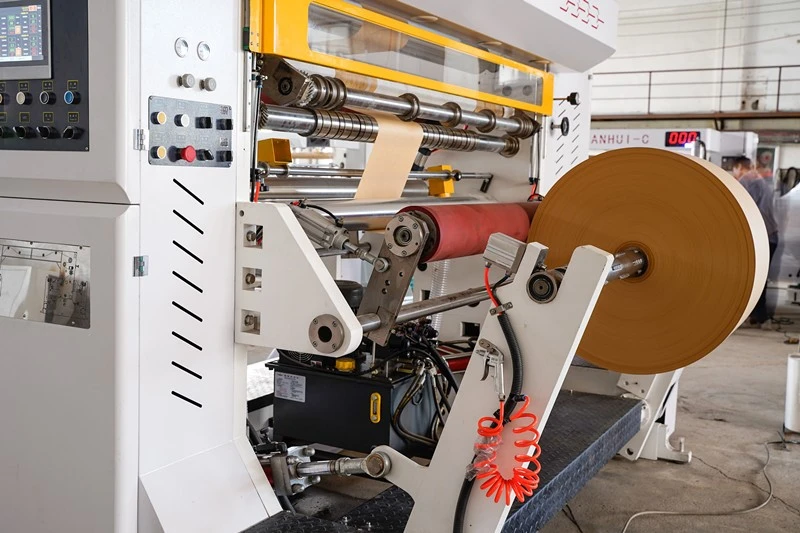

2.The gantry type slitter rewinder with PLC auto control – Handles metering, leftover detection, and exact‑length shutdown with alarms. The rewind section uses a front‑back A/B shaft setup (air‑inflated) plus hydraulic auto unloading – roll changes are quick and take little effort.

3.Sensitive edge guide (imported) – Even if the incoming web has rough edges or poor flatness, this system keeps the cut accurate at high speed. Less scrap, better yield.

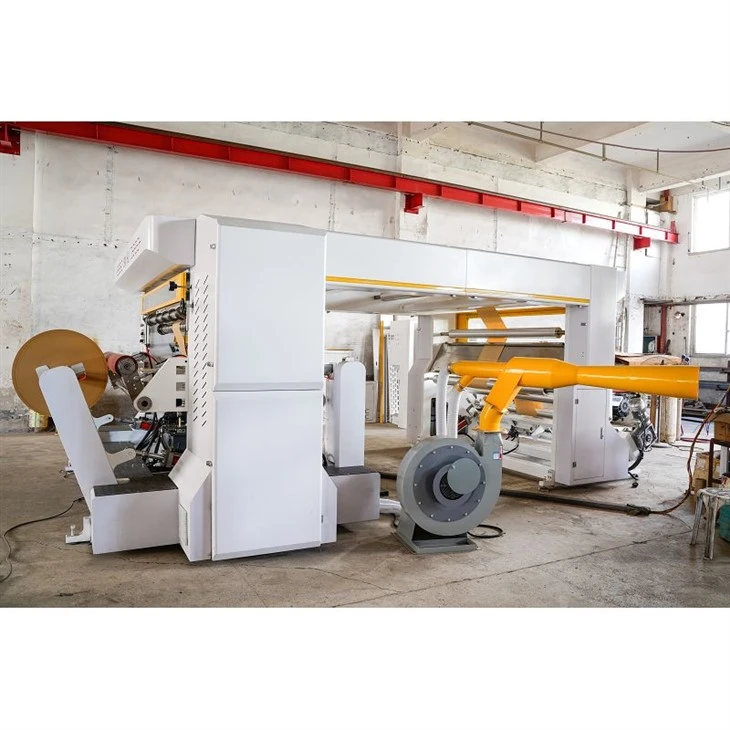

4.Modular circular blades – Optional automatic blade positioning available. A high‑pressure fan blows trim waste away automatically – no need for someone to clean up.

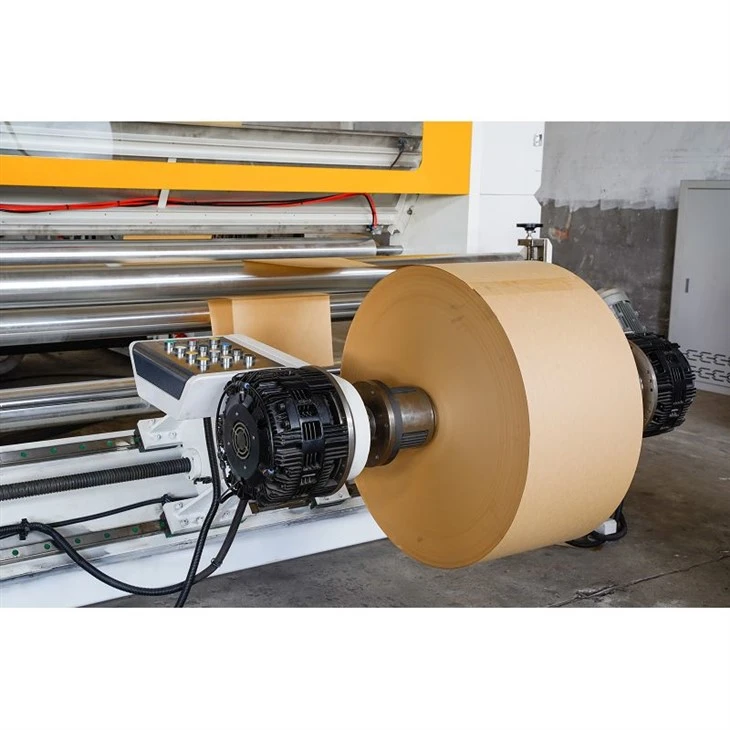

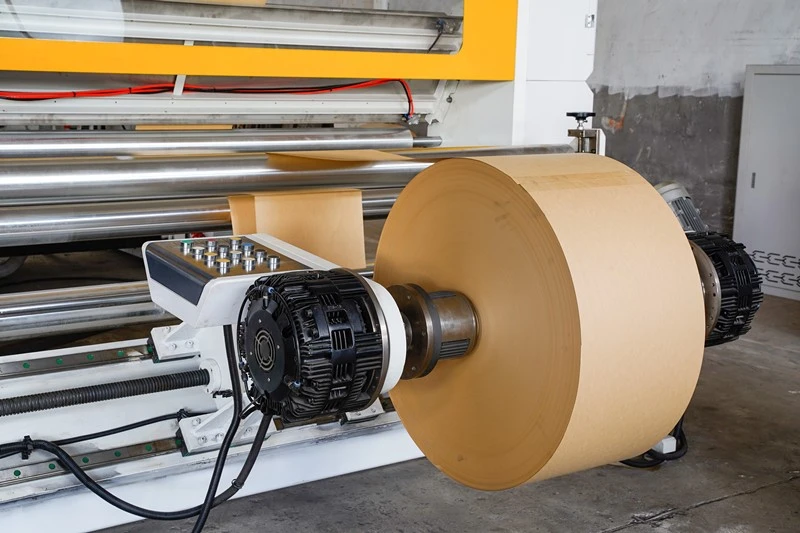

5.Heavy‑duty shaftless hydraulic feed – Handles over 3 tons. No problem feeding those extra‑large, extra‑heavy master rolls.

6.Shaft options – Unwind: 3–6 inch pneumatic shafts (customizable). Rewind standard: 3‑inch key‑bar pneumatic shafts. Other sizes made to order.

7.Standard roll capacities – Max unwind: 1200 mm to 1500 mm (depending on model). Max rewind: 1200 mm. Larger diameters available on request.

8.Custom footprint – Working width and overall machine size can be tailored to your workshop space and production layout.

9.Speed – Max operating speed: 500 m/min. That means high output without sacrificing accuracy – ideal for large‑volume, around‑the‑clock runs.
