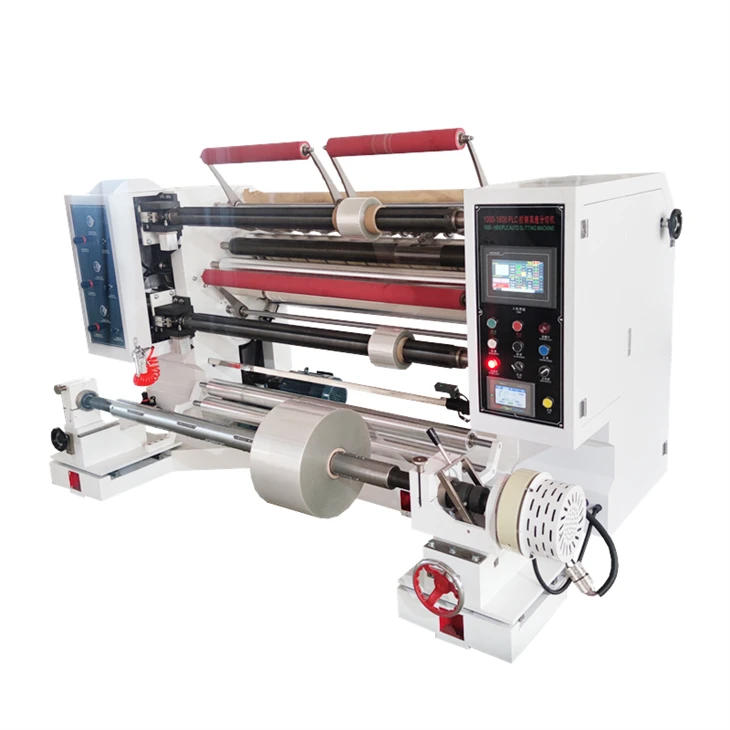

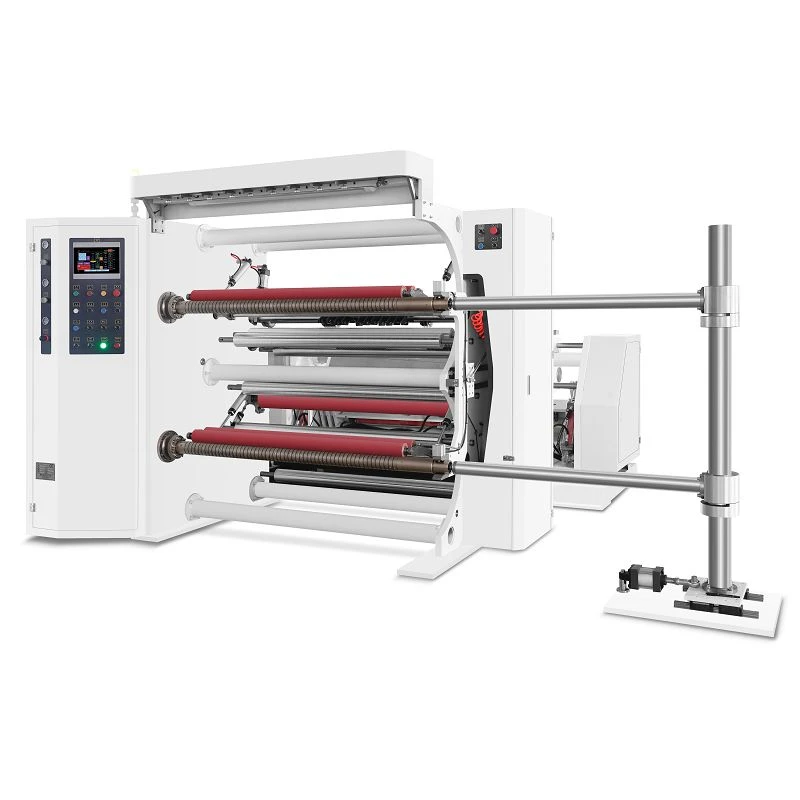

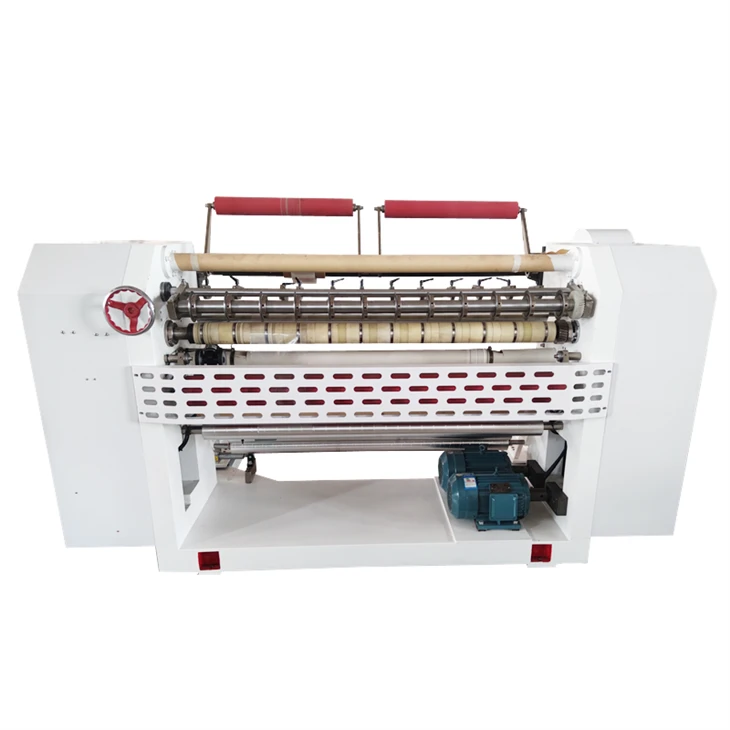

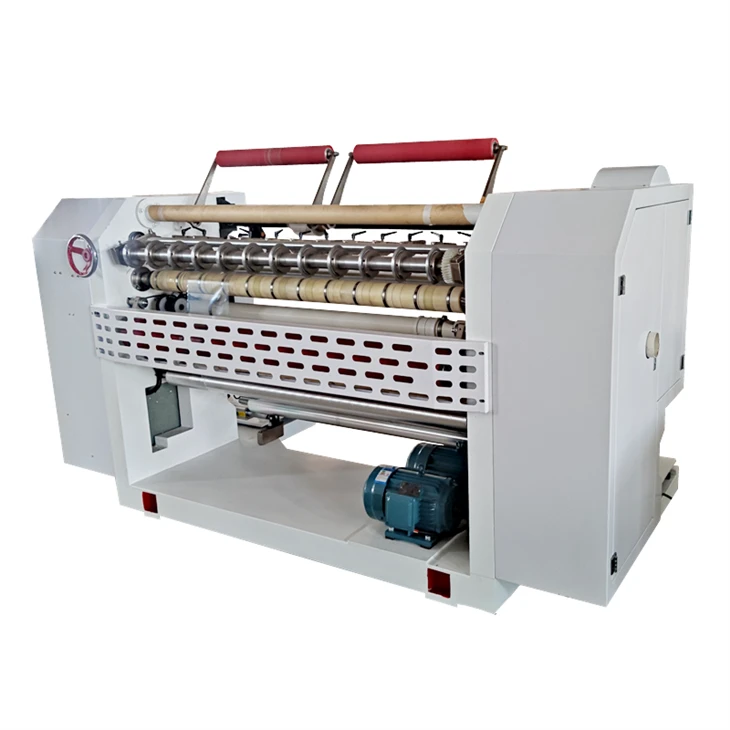

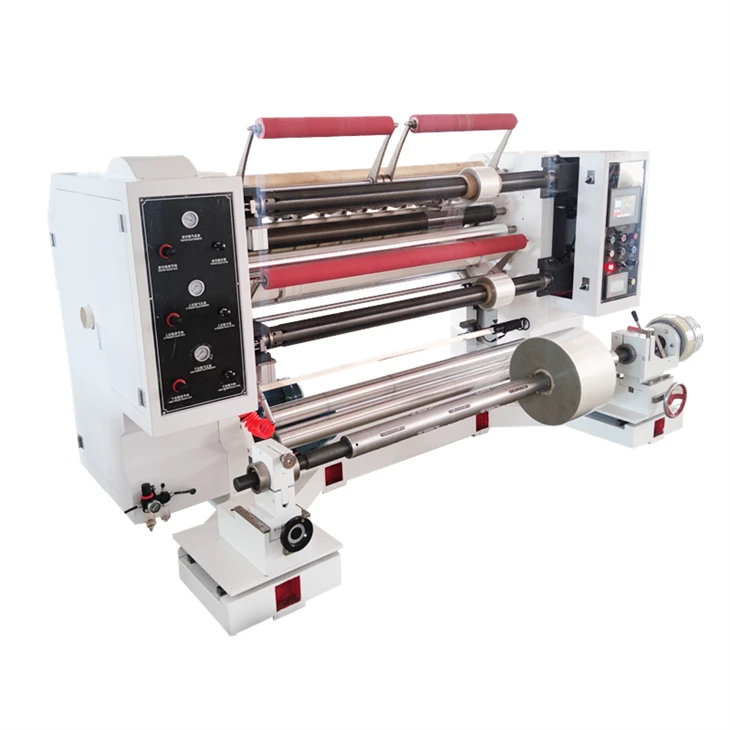

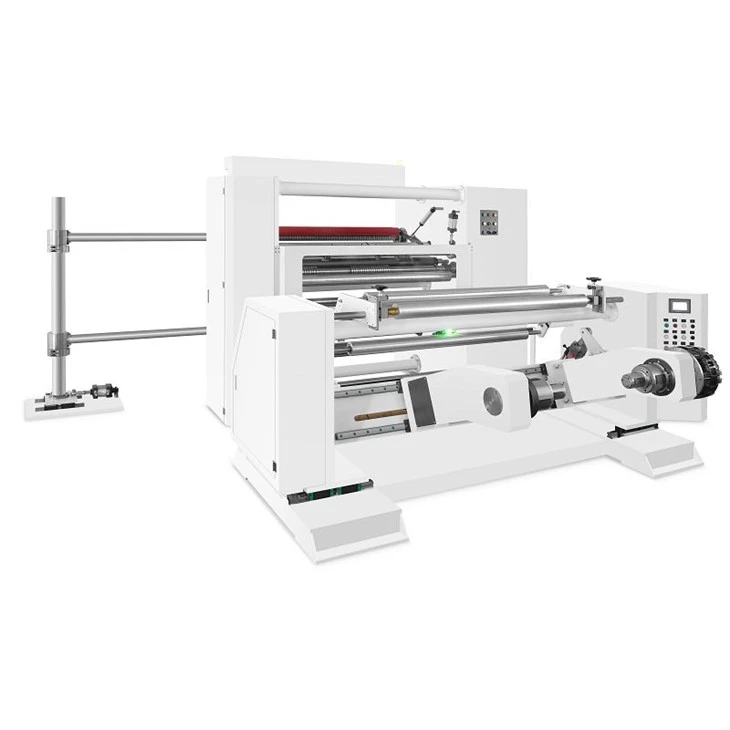

Vertical Slitting Machine

Fast roll changes – Both unwind and rewind shafts swing out from one side. No heavy lifting, no wrestling with chucks. Changeover takes seconds, not minutes, and cuts operator strain.

The vertical slitting machine stable tension throughout – A PLC-controlled system with a self-adjusting tension sensor keeps pull constant from start to finish. No sudden jerks, no slack – just flat, wrinkle-free rolls every time.

Two cutting methods in one – Fit it with both circular and straight blades. Switch between them depending on the material – thick or thin, film or paper. One machine, many jobs.

The vertical slitting machine built-in edge guide – An automatic guidance system watches the web as it runs and corrects any drift instantly. Edges stay straight, waste stays low, and rewind accuracy stays high.

Standard sizes, no surprises – Max unwind diameter: 600 mm. Max rewind diameter: 450 mm. These cover most routine work. If you need bigger or smaller, just ask – we customise.

Dimensions to fit your floor – Working width, overall footprint – all can be adjusted to your workshop space and material widths.

Shafts that grip and release – Unwind: 3-inch key-type air shaft (standard). Rewind: 3-inch lug-type air shaft (standard). Both hold cores firmly and let go easily.
