Wenzhou Sanhui Machinery Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of kraft paper slitting machine in China. With abundant experience, we are able to meet the needs of the majority of our customers. Welcome to wholesale customized kraft paper slitting machine at competitive price from our factory.

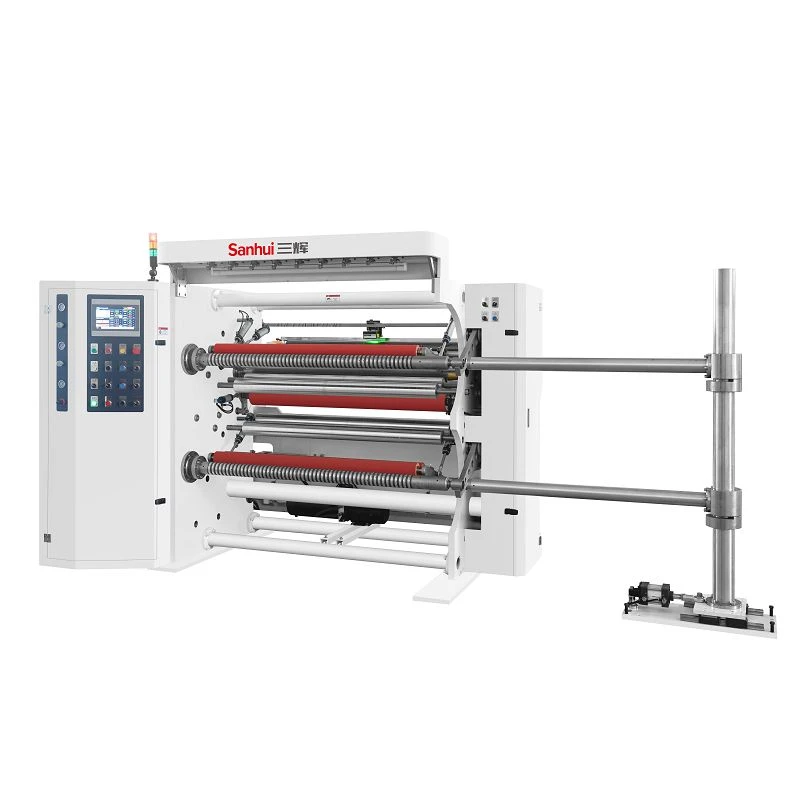

The kraft paper slitting machine is a fully‑automatic "paper‑cutting wonder". It is specially designed to slit extra‑wide large rolls of kraft paper along their long edges and rewind them, or cut them crosswise directly. The control chip installed inside the kraft paper slitting machine is highly precise, and its blades are extremely sharp. Even when the original paper roll weighs several tons, the machine can run at high speed while delivering highly accurate cuts. Its greatest capability is to cut the oversized kraft paper rolls produced by paper mills into bundles of smaller rolls or flat sheets of specified width with absolute precision according to customers' required dimensions.
Core Working Principle
Unwinding and Tension Control：Giant base paper rolls are loaded via pneumatic or hydraulic shaft‑less feeding. The kraft paper slitting machine relies on a PLC control system and vector variable‑frequency motor to automatically calculate roll diameter changes, achieve constant‑tension unwinding, and prevent the paper from wrinkling or breaking during high‑speed operation.

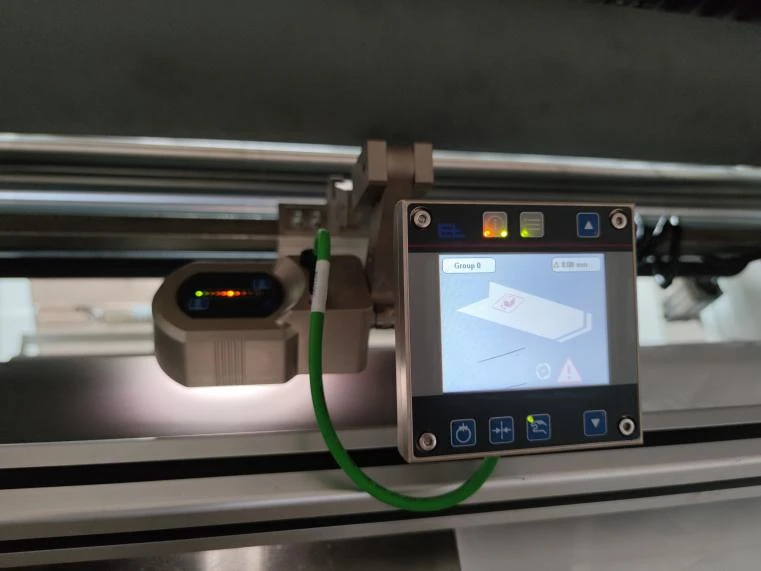

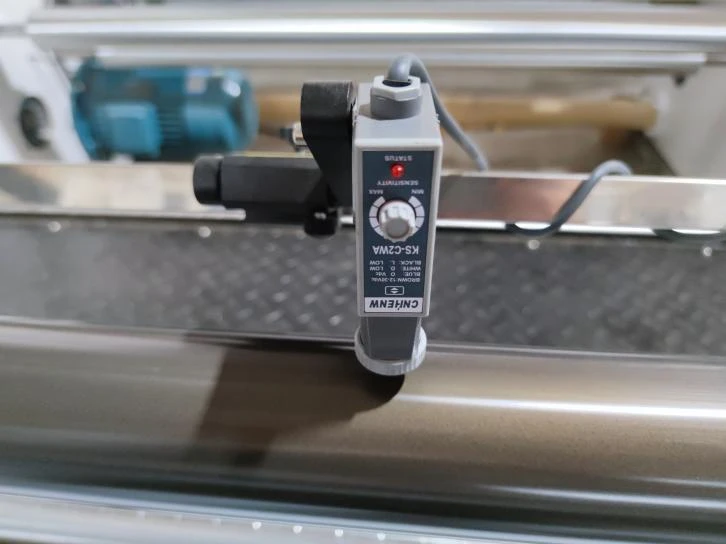

Correction and Slitting：The base paper passes through a photoelectric or ultrasonic deviation‑correcting system to ensure precise material feeding position. Afterwards, the paper is longitudinally slit by circular knives, and high‑pressure fans automatically remove the waste edges on both sides simultaneously.
Winding：The slit paper is wound into tight small rolls by an air‑expanding shaft. The system features automatic meter‑counting and taper tension control to ensure neat winding ends, and it stops automatically when the preset meter length or diameter is reached.
Modern kraft paper slitting machines are highly intelligent. Take the three‑servo‑motor control technology as an example: unwinding, traction and winding are each driven by an independent motor, and synchronization is realized via PLC bus communication to guarantee stable tension during acceleration and deceleration. Some high‑end models even adopt servo motors to directly control the cutter angle, which can automatically adjust the cutting‑edge penetration angle according to different material properties, effectively extending blade service life and improving cutting‑surface quality.
