Wenzhou Sanhui Machinery Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of surface slitting machine in China. With abundant experience, we are able to meet the needs of the majority of our customers. Welcome to wholesale customized surface slitting machine at competitive price from our factory.

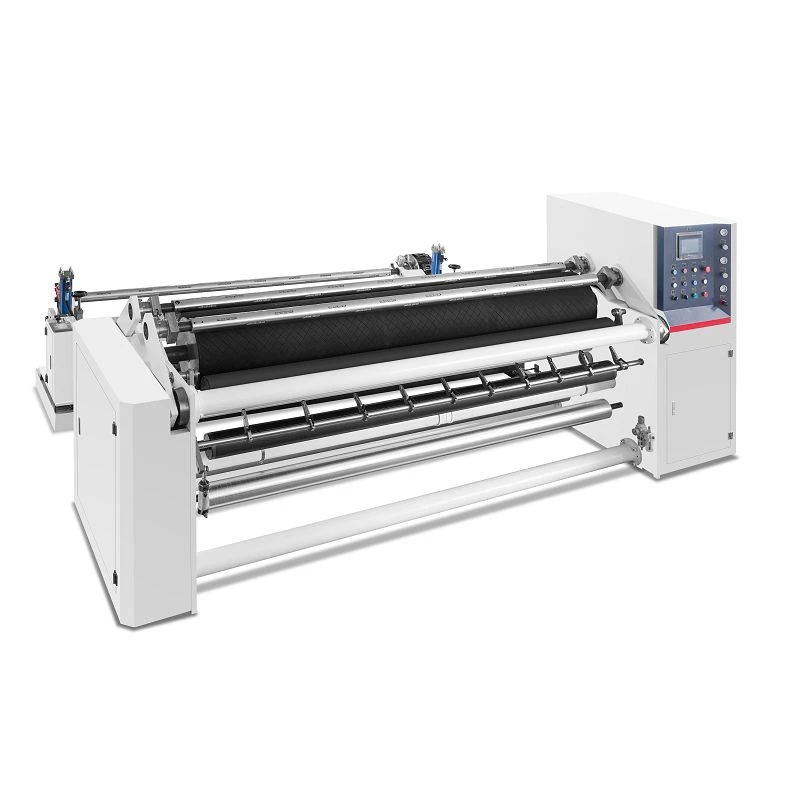

The surface slitting machine adopts surface friction-driven rewind principle. Unlike center-drive slitter, the rewind shafts have no independent drive; material rolls are rotated by friction from surface driving rollers. It is widely used for slitting and rewinding paper, non-woven fabric, film, foam and other web materials.
The surface slitting machine equipped with air-expansion shaft for unwinding, hydraulic shaft-less loading is optional for heavy master rolls. EPC web guide system tracks material edge in real-time to prevent web deviation. Constant tension control delivers soft tension output to avoid material elongation and wrinkling.
Key advantages: Stable tension across changing roll diameters; excellent capacity for large finished roll diameter; simple structure and easy maintenance; good tolerance for inner core diameter deviation.
Applicable materials: kraft paper, composite paper, non-woven fabric, PE film, foam, adhesive label stock, decorative film.
Limitations: Not recommended for ultra-thin foil, lithium-ion battery separator or other surface-sensitive materials, as contact from friction rollers may cause surface indentations.
Typical usage: Convert wide master rolls into large-diameter finished rolls with custom widths for packaging and paper industries.
Performance and Features
Surface Winding Mechanism
Unlike conventional center winding, the surface slitting machine adopts a combination of center winding and surface‑contact winding. This method ensures uniform stress on materials during winding and delivers more consistent and stable winding quality. It is especially suitable for processing thin materials or those susceptible to the impact of central tensile force.
Slitting and Tension Control
The surface slitting machine is generally fitted with reliable cutting tools such as circular knives or air knives, and adopts a photoelectric automatic deviation‑correction system to prevent material deviation during movement. Meanwhile, constant‑tension control systems including magnetic powder clutches or variable‑frequency motors are utilized to maintain stable tension during high‑speed material slitting.
Automatic Control
Modern surface slitting machines mostly adopt microcomputer controllers, which are equipped with functions such as automatic meter‑counting and automatic stop at preset lengths, featuring easy operation and stable operation.
